Air Compressor TE-AC 430/90/10

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • High-performance compressor with V-belt drive
    • Belt drive ensures low speed and quiet operation
    • Long life thanks to oil lubricated pump & high quality components
    • Oil level check through a window
    • The 90 l tank provides sufficient air reserves for prolonged jobs
    • High air flow & long durability thanks to double compressor unit
    • Applications up to 10 bar can be set using the pressure reducer
    • Pressure gauge & quick-release coupling for regulated pressure
    • Pressure gauge & quick-release coupling for unregulated pressure
    • 2 large wheels and 2 castors with one locking brake
    • 10 years warranty against rusting through of the tank
    • Non-return valve, safety valve
    • The drain cock enables user-friendly maintenance

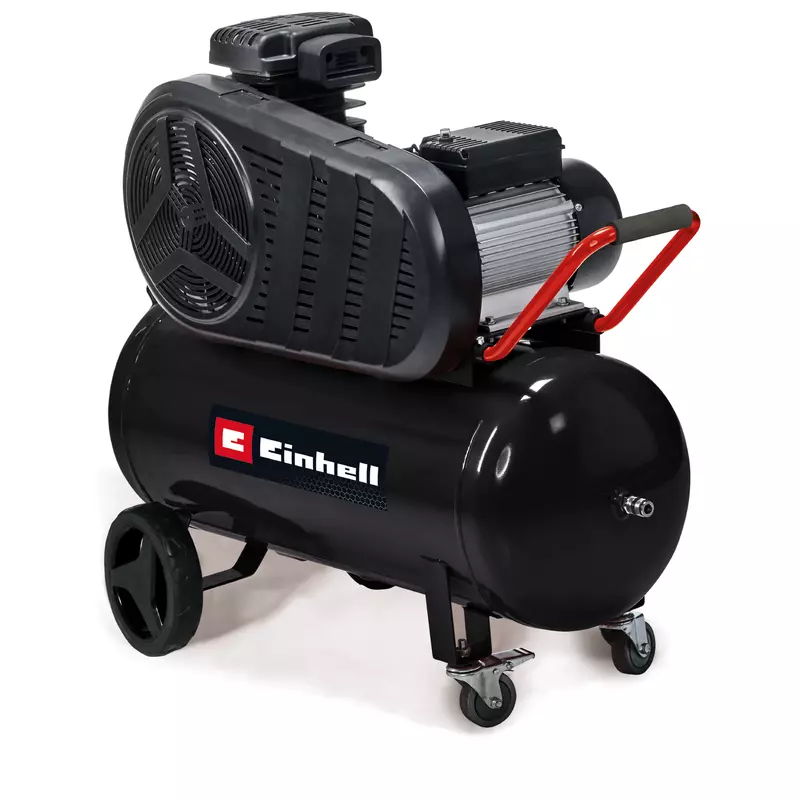

    einhell-expert-air-compressor-4010800-productimage-001
    Article description

    With the Einhell compressor TE-AC 430/90/10 and the right tools to go with it, you can apply lacquer and paint in next to no time and apply preservative oil to small or large surfaces on wood. The high-performance compressor with V-belt drive and 3,000 W (4.1 HP) makes it possible to use a whole range of new tools, the belt drive ensures a low speed and smooth operation, and the 90 l tank provides plenty of air reserves for prolonged jobs. Many applications up to a maximum of 10 bar, including blow-cleaning or sand-blasting jobs, can be set by the pressure reducer. This allround helper also effortlessly inflates car, motorbike and cycle tires, as well as balls and air mattresses. The double compressor unit and the V-belt drive assure a high output power. The oil lubrication of the pump and high quality components contribute to a long life for the compressor. The oil level can be checked through a window. Safety during operation is ensured by the non-return and safety valve. There is an integrated pressure gauge and a quick-release coupling for regulated working pressure and unregulated tank pressure. Einhell is convinced of the quality and provides a ten year rust-through warranty for the tank. For mobility and a secure holding position there are two large wheels and two castors with one locking brake. The drain cock on the compressor enables user-friendly maintenance.

    Technical details

    Max. operating pressure10 bar
    Motor speed2850 min^-1
    Motor typeInduction motor
    Number of cylinders4 pcs
    Output power 0 bar230 l/min
    Output power 4 bar210 l/min
    Output power 7 bar200 l/min
    Product weight68.35 Kg
    Pump speed1020 min^-1
    Sound pressure level (volume)73 dB (A)
    Suction power430 l/min
    Tank volume90 l

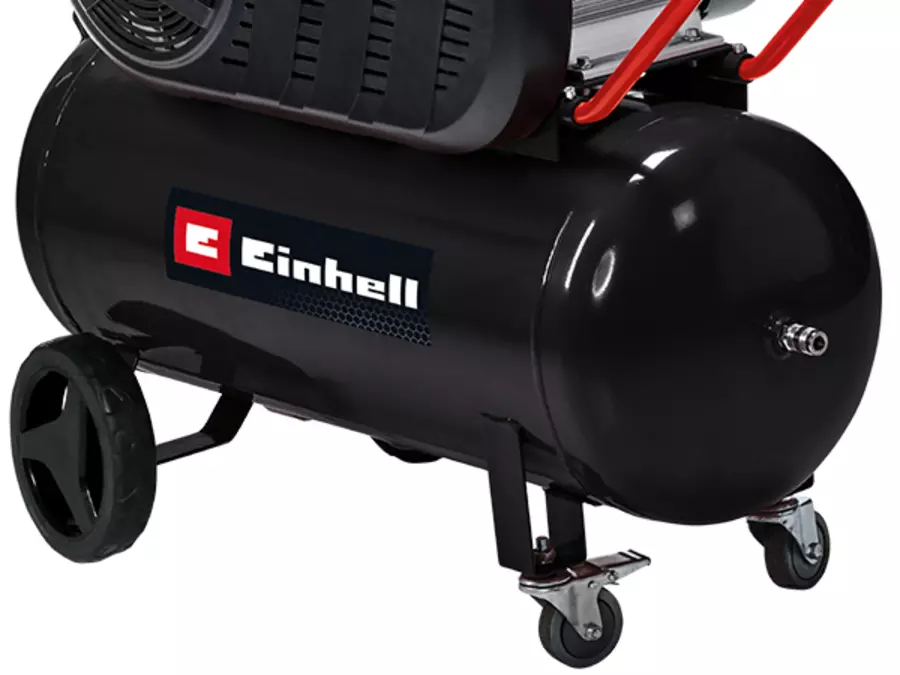

    Sufficient-air-reserves

    Sufficient air reserves

    With its 90-litre tank, the compressor is suitable for various compressed air applications up to a maximum pressure of 10 bar.

    Convenient-maintenance

    Convenient maintenance

    The condensate produced by the overpressure in the boiler can be emptied with the drain cock on the underside.

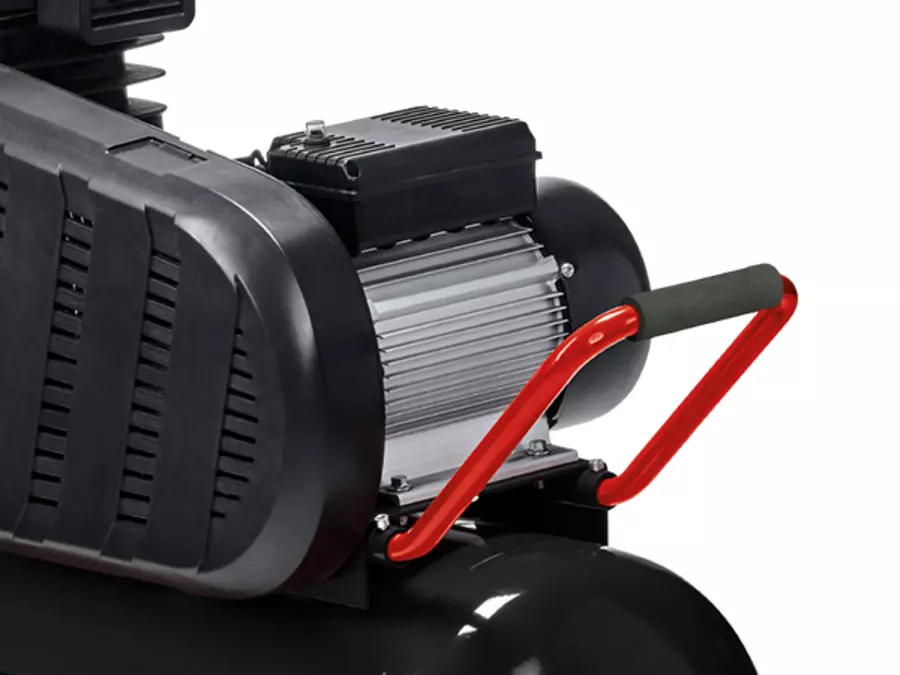

    Oil-lubricated-pump

    Oil-lubricated pump

    Thanks to high-quality components and the oil-lubricated pump, a long service life is guaranteed. The oil level is checked via a sight glass.

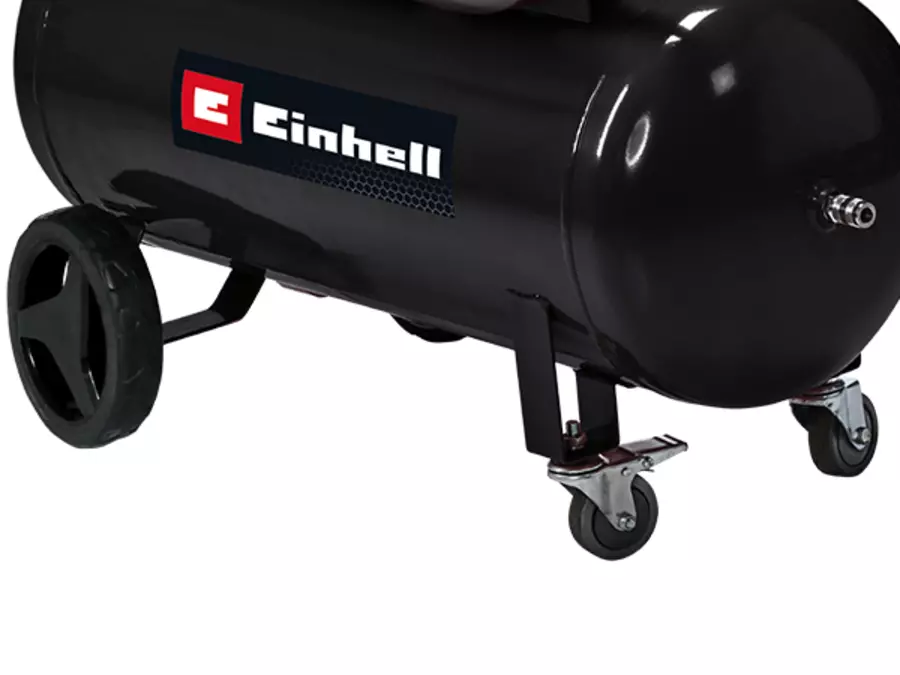

    Simple-transport

    Simple transport

    Two large wheels and two swivel castors with a parking brake ensure mobility and a secure holding position.

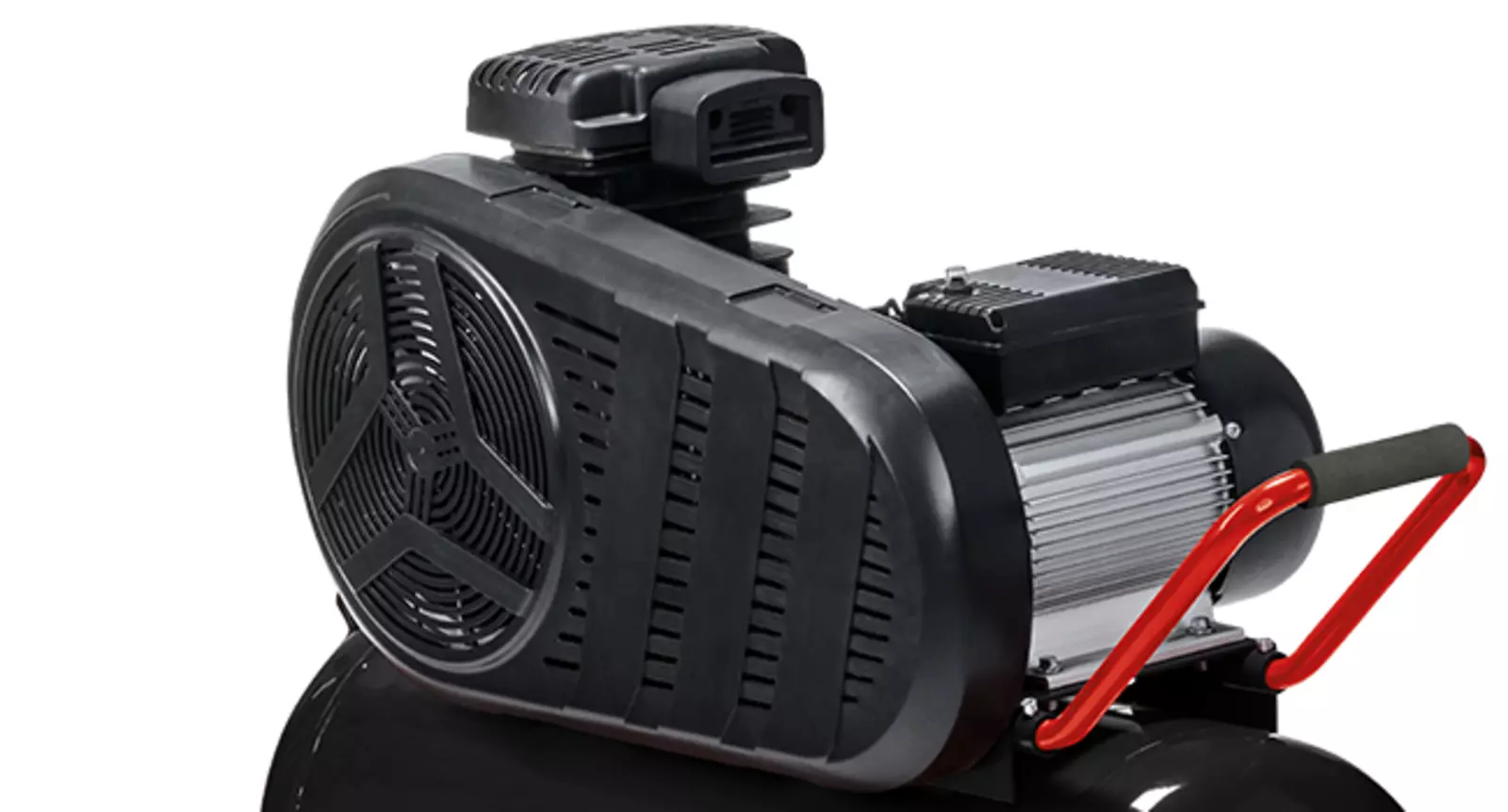

    Quiet-operation-by-V-belt-drive

    Quiet operation by V-belt drive

    A whole new class of tools can be opened up with the 3,000 W (4.1 hp) powerful and robust compressor with V-belt drive. The belt drive ensures a low engine speed of 2850 rpm and thus ensures smooth operation.

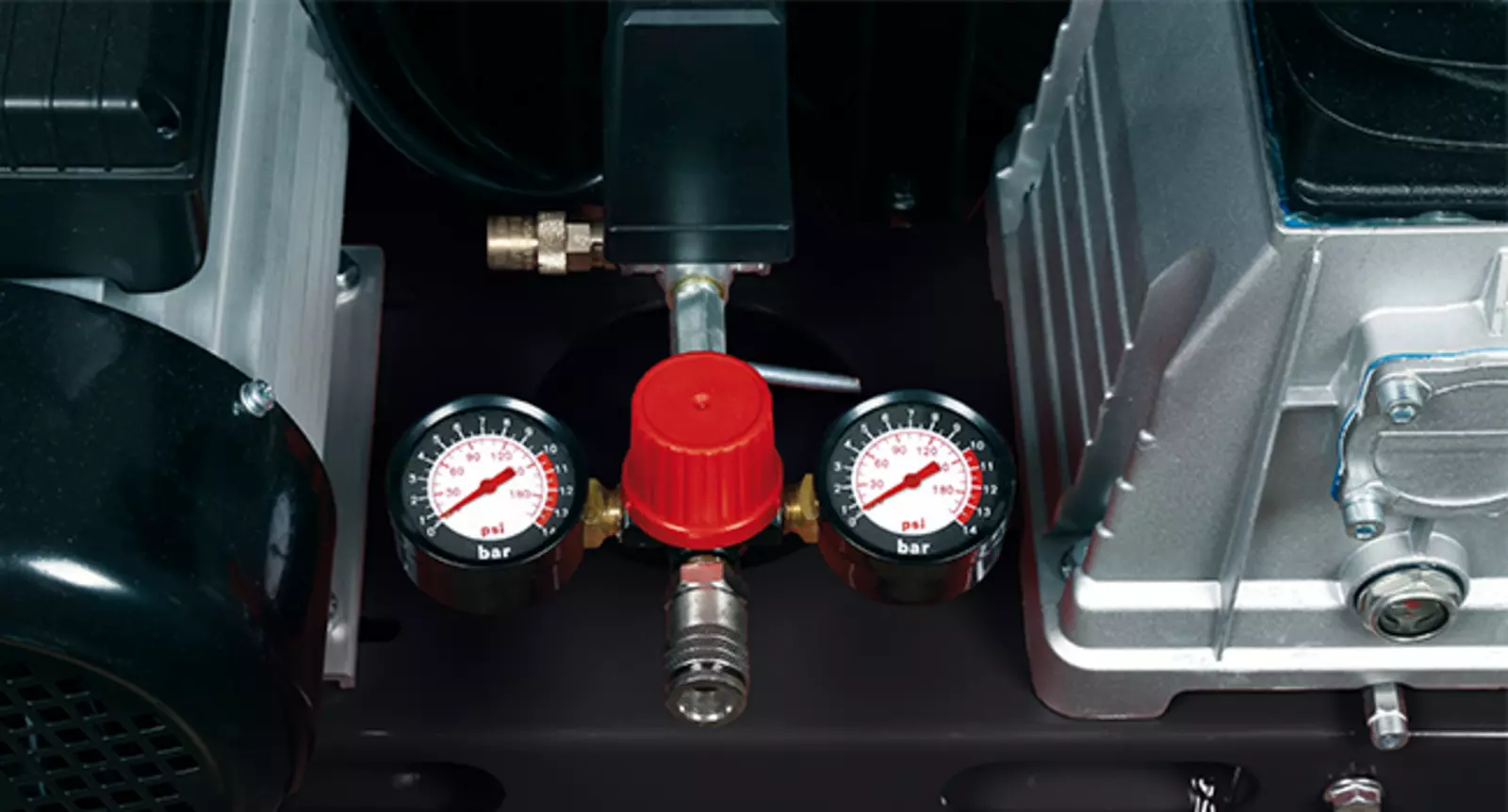

    Regulated-working-pressure

    Regulated working pressure

    For regulated working pressure adapted to each application, a pressure gauge and a quick coupling are available for the connection of the right accessories. At an operating pressure of 7 bar, the compressor has a maximum output of 200 litres per minute.

    So you'll never run out of air!

    The Einhell compressor TE-AC 430/90/10 can not only easily inflate car, motorcycle & bicycle tyres, or balls and air mattresses, but is also used for blowing and sandblasting work. Various suitable compressed air tools from Einhell are available separately.
